How To Adjust The Camber On A Truck: A Comprehensive Professional Guide
Adjusting the camber on a truck involves modifying the vertical angle of the wheels relative to the road surface by manipulating eccentric cams, shims, or aftermarket adjustment kits to ensure optimal tire contact patch and steering geometry. Correcting camber is essential for preventing uneven tire wear, improving directional stability, and maintaining manufacturer-specified handling characteristics, typically calibrated within a tolerance of plus or minus 0.5 degrees.
Essential Preparation and Technical Requirements
Before initiating a camber adjustment, you must verify the structural integrity of the front suspension. Camber is not a stand-alone variable; it is intrinsically linked to caster and toe. If ball joints, tie rod ends, or control arm bushings exhibit play, any adjustment made will be rendered inaccurate by suspension deflection under load.
- Essential Equipment: High-precision digital bubble gauge or magnetic camber gauge, floor jack with jack stands, deep-well socket set (including breaker bar), torque wrench, penetrating oil (for rusted fasteners), and a level shop floor.
- Prerequisite Knowledge: Familiarity with your specific truck's suspension architecture, such as Double Wishbone, Solid Axle, or Twin-I-Beam. Consult the OEM manual for specific camber specifications, as factory settings vary based on gross vehicle weight ratings (GVWR).
- Time and Budget: Expect a duration of two to four hours for a DIY procedure. If aftermarket camber kits are required, allocate a budget for replacement eccentric bolts or adjustable upper control arms.
Precise Workflow for Camber Angle Calibration
Step 1: Baseline Measurement and Vehicle Stabilization

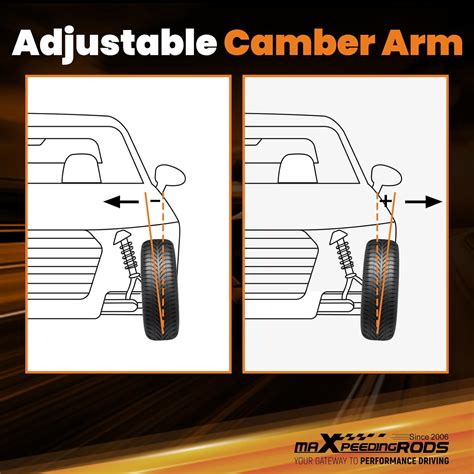

Park the truck on a perfectly level surface. Ensure the tire pressure is set exactly to the manufacturer's recommendation, as uneven inflation directly skews camber readings. Place the magnetic camber gauge against the center of the wheel rim or the hub face. Record the initial angle. A negative camber reading indicates the top of the tire tilts inward, while positive camber indicates an outward tilt. Zero out the gauge against the bubble level to ensure your reference point is accurate.
Step 2: Accessing the Adjustment Mechanism
Locate the adjustment hardware specific to your chassis. Most modern trucks use eccentric cams on the lower control arm mounting points or adjustable shims located between the frame and the upper control arm mounting bracket. In older trucks or specific heavy-duty models, you may need to install an aftermarket adjustable ball joint or "camber-caster" cam bolt kit if the factory setup lacks sufficient adjustment range.
Step 3: Modifying the Camber Angle
Loosen the retaining nuts on the eccentric bolts or the upper control arm mounting bolts. Rotate the eccentric cam slowly. As you turn the cam, watch the bubble gauge. Turning the cam pushes or pulls the base of the steering knuckle, effectively shifting the top of the tire in or out.
Warning: Never force a rusted eccentric bolt. Use heavy-duty penetrating oil and allow it to soak for at least 30 minutes before applying torque to avoid shearing the bolt head.
Step 4: Final Verification and Torque Sequencing
Once the gauge displays the desired specification (typically between -0.5 and +0.5 degrees for most light-duty trucks), hold the cam bolt steady with a wrench while tightening the lock nut. After tightening, re-check the measurement, as the act of torquing the bolt often causes the alignment to shift slightly. Verify that all fasteners meet the OEM torque specifications provided in your service manual.
How To Fix Positive Camber After Lift: Easy But Effective Methods ...
Technical Parameters and Suspension Geometry Benchmarks
| Suspension Type | Typical Camber Range (Degrees) | Adjustment Method | Primary Load Impact |
|---|---|---|---|
| Independent Front (IFS) | -0.5 to 0.0 | Eccentric Cams / Shims | High sensitivity to ride height |
| Solid Axle (Coil) | 0.0 to +0.5 | Adjustable Ball Joints | Stable under heavy payload |
| Twin-I-Beam | -1.0 to +1.0 | Bent Radius Arms / Bushings | Requires specialized tools |
| Aftermarket Lifted | -0.2 to +0.2 | Adjustable Control Arms | Compensates for geometry shift |
Troubleshooting Common Alignment Deviations
- Failure Scenario: Inability to reach desired negative camber.
- Root Cause: The factory adjustment cams have reached their mechanical limit due to suspension sag or aftermarket lift kits.
- Actionable Fix: Install adjustable upper control arms or eccentric ball joints that provide a broader range of adjustment.
- Failure Scenario: Camber shifts significantly after tightening fasteners.
- Root Cause: The eccentric bolt is worn, or the bushing mounting hole has become elongated/deformed.
- Actionable Fix: Inspect the mounting bracket for damage and replace the cam bolt kit; if the hole is elongated, professional welding or chassis reinforcement may be necessary.
- Failure Scenario: Vehicle pulls to one side despite neutral camber.
- Root Cause: Cross-camber or cross-caster imbalance where one side is significantly different from the other, or a tire radial pull.
- Actionable Fix: Perform a full four-wheel alignment to ensure cross-camber is within 0.5 degrees and rotate tires to rule out belt separation.
Frequently Asked Questions
Does a truck lift kit require a camber adjustment?
Yes. Installing a lift kit alters the geometry of the suspension, typically pushing the camber toward a positive range. You must realign the camber immediately after a lift to prevent rapid outside edge tire wear and maintain vehicle stability.
What is the difference between camber and caster?
Camber is the vertical tilt of the wheel when viewed from the front, while caster is the forward or backward tilt of the steering axis when viewed from the side. Both are crucial, but camber specifically dictates how much of your tire contact patch touches the road during straight-line driving.
Can I align my truck at home without a shop-grade rack?
You can perform a basic alignment using a magnetic gauge and string lines, but it will lack the precision of an optical laser-based alignment rack. If you perform this at home, always follow up with a professional shop to verify the thrust angle and total alignment specs.
Why is my tire wearing on only one side?
Uneven tire wear is a classic symptom of improper camber. If the inside edge is worn, your camber is likely too negative; if the outside edge is worn, your camber is too positive. Correcting the alignment will stop the wear, though it will not reverse damage already done to the tire rubber.
