How To Drill A Hole In Ceramic Tile Without Cracking It: A Step-by-Step Professional Guide

Drilling a clean hole in ceramic tile requires a specialized diamond-grit or carbide-tipped drill bit, constant water lubrication to dissipate friction heat, and operating a variable-speed drill at low RPMs (100 to 600 RPM) without hammer action. By masking the drilling point with tape to prevent bit slippage and initiating the cut at an angle, you can safely penetrate ceramic and porcelain tiles without cracking the glazing or fracturing the substrate.

Pre-Operation & Tool Selection Checklist

Before attempting to drill through fired clay, silicates, and protective glaze, you must understand the physical properties of the tile surface. Ceramic tiles are graded on the Mohs hardness scale, typically landing between 5 and 6, while denser porcelain tiles score between 7 and 8. Standard high-speed steel (HSS) and cobalt drill bits cannot penetrate these surfaces; attempting to use them will dull the bit instantly, generate extreme localized heat, and crack the tile due to thermal shock.

For successful penetration, you must match your tooling to the specific density of your tile and prep your work environment to handle dust and slurry.

Required Materials, Equipment, and Standards

• Rotary Drill: A variable-speed corded or cordless drill. Impact drivers and hammer drills must have their impact/hammer settings strictly deactivated to prevent mechanical fracturing.
• Drill Bits:


  • Diamond-Grit Core Bits: Recommended for all tile types, especially hard porcelain and glazed ceramic.
  • Carbide-Tipped Spear-Point Bits: Highly effective for soft-to-medium ceramic tiles, though prone to wearing out quickly on hard porcelain.
• Cooling and Lubrication Supplies: A spray bottle filled with cold water, a dense car-washing sponge, or plumber's putty to construct a water reservoir.
• Surface Prep and Layout Tools: High-tack painter's masking tape, a grease pencil or fine-tip permanent marker, a level, and a measuring tape.
• Personal Protective Equipment (PPE): ANSI Z87.1-approved safety glasses to protect against flying ceramic shards, and an N95 dust mask to prevent inhalation of fine silica dust.
• Estimated Budget: $15 to $60, depending on the diameter and quality of the diamond drill bit selected.
• Estimated Time: 5 to 15 minutes per hole, depending on tile density and thickness.

Step-by-Step Precision Drilling Execution

Executing this task flawlessly requires patience, physical control, and systematic cooling. Follow these steps to ensure a clean, professional finish on both installed tiles and loose, uninstalled pieces.

Step 1: Tile Assessment and Layout Marking

Determine if the tile is ceramic or porcelain. If the tile is uninstalled, look at the side profile; ceramic tiles generally have a red or tan clay body beneath the glaze, whereas porcelain has a uniform white or gray dense body.

1. Clean the tile surface with rubbing alcohol to remove grease, grout haze, or construction dust.
2. Measure and identify the exact center point for your hole.
3. Avoid placing holes closer than 3/4 inch (19 mm) to the edge of any tile. Drilling too close to the edge concentrates stress lines and significantly increases the likelihood of shearing the tile.
4. Mark the drill center clearly using a grease pencil or fine-tip permanent marker.

Step 2: Preparing the Surface and Preventing Bit Drift

Glazed ceramic tiles are incredibly slick, meaning a drill bit will immediately wander across the surface upon startup, scarring the face of the tile.

1. Cut a 2-inch strip of heavy-duty painter's masking tape.
2. Place the tape directly over your marked layout point in an "X" configuration.
3. Re-measure and transfer your center mark onto the surface of the tape. The fibrous texture of the tape provides the necessary friction to keep the tip of the drill bit stable during the critical initial revolutions.

Warning: Never use a steel center punch or nail to create a starter dimple in a ceramic tile. The sharp impact will shatter the fragile surface glaze and send micro-fractures deep into the tile body, causing it to split under the heat and pressure of drilling.

Step 3: Lubrication and Thermal Management Setup

Friction between the drill bit and the silica-rich tile body generates temperatures that exceed 500°F (260°C) within seconds. Without cooling, this heat expands the tile locally, creating high thermal stress that cracks the tile. It also melts the nickel binder holding the diamond grit onto the bit.

1. The Putty Dam Method (For horizontal surfaces): Roll a small piece of plumber's putty into a rope. Shape it into a ring about 2 inches in diameter and press it firmly onto the tile around your target mark. Fill this temporary reservoir with cold water.
2. The Sponge Method (For vertical walls): Soak a dense sponge in cold water. Hold the wet sponge directly adjacent to the drilling point so that water continuously squeezes out and flows over the drill bit as you work.
3. The Helper Spray Method: Have an assistant continuously mist the drill tip with a spray bottle of cold water throughout the entire cutting sequence.

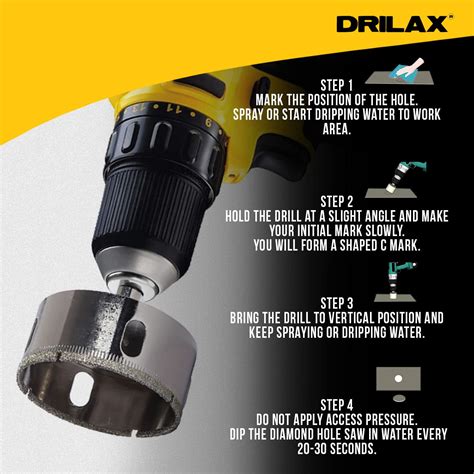

Step 4: Initiating the Cut (The Angle Method)

If using a diamond core hole saw, it lacks a center pilot bit. If you hold it flat against the tile, it will jump violently.

1. Ensure your drill is set to "standard rotary" mode. Confirm that the hammer action is turned off.
2. Hold the drill firmly with both hands and position the bit at a 45-degree angle to the tile surface.
3. Pull the trigger to start the drill at a low speed (approx. 200–300 RPM).
4. Gently touch the leading edge of the angled diamond bit to the tape on the tile. Let the edge of the bit grind a shallow, crescent-shaped groove into the glaze.
5. Once this crescent groove is established (usually within 10 to 15 seconds), slowly and smoothly pivot the drill upright until the bit is perfectly perpendicular (90 degrees) to the tile.

Pro-Tip: If using a carbide-tipped spear-point bit instead of a hole saw, you do not need to start at an angle. Place the point directly on the marked tape at a 90-degree angle and run the drill at its lowest speed, applying steady, light downward pressure to flake away the glaze layer.

Step 5: Penetrating the Substrate and Completing the Hole

Once the glaze is bypassed, you will hit the softer, more porous clay body of the ceramic tile.

1. Maintain a constant, light downward pressure. Do not push or lean your body weight into the drill; let the diamond grit grind the material away.
2. Keep the drill speed between 400 and 600 RPM for ceramic, and under 300 RPM for hard porcelain. Higher speeds generate destructive heat without speeding up the cut.
3. Periodically back the bit out of the hole (every 5 to 10 seconds) while keeping the drill running. This flushes out the accumulated ceramic slurry and allows fresh water to cool the cutting edge.
4. As you reach the back of the tile, reduce your downward pressure to almost zero. As the bit breaks through the back of the tile and enters the backing material (drywall, cement backer board, or plywood), the resistance will drop. Sudden pressure at this breakthrough point can blow out the back of the tile, creating a crater-like crack.
5. Once the tile is fully penetrated, stop the drill before pulling the bit out to prevent it from clipping the edges of the newly cut hole.

Drill Bit Material Specifications & Performance Metrics

Selecting the correct tooling prevents thermal failure and guarantees clean edges. Use this comparative table to select the proper drill bit based on your tile material and project scope:

Critical Drilling Failures & Field Troubleshooting

Even experienced installers run into issues when drilling tile due to structural variations or tool wear. Use these field-tested remedies to solve common issues on the job.

• Failure Scenario: The drill bit spins but does not make downward progress, and the tile surface is turning gray or black.




  • Root Cause: The drill speed is too high, and there is inadequate lubrication, which has caused the diamond grit to glaze over or melt off the bit shank (thermal failure).
  • Actionable Fix: Discard the damaged bit; once the diamond matrix is compromised, it cannot be salvaged. Fit a new bit, reduce your drill speed by half, and use a continuous water feed. Ensure you are not running the drill in reverse.

• Failure Scenario: The tile cracks completely across its face just as the drill bit passes through the back.




  • Root Cause: Excessive downward pressure near the end of the cut, combined with a void in the thinset mortar directly behind the tile. Without structural support behind the tile, the physical pressure of the drill snaps the ceramic.
  • Actionable Fix: When installing new tile, ensure 95% mortar coverage behind the tile in wet areas. When drilling, drastically reduce downward pressure as you approach the backing board. Let the drill bit float gently to finish the cut.

• Failure Scenario: The drill bit slips immediately on startup, leaving a long, curved scratch across the glazed surface.




  • Root Cause: Drilling at a 90-degree angle without a pilot bit or guide, or failure to apply an high-friction tape barrier to steady the bit.
  • Actionable Fix: Buff out minor surface scratches with a cerium oxide glass polishing compound. For future holes, construct a guide template out of a scrap piece of plywood with a hole matching your bit size. Clamp or tape this template securely over the tile to act as a physical collar that prevents the bit from wandering.

Frequently Asked Questions

Can you drill a hole in ceramic tile with a regular drill bit?

No. Standard twist drill bits made of high-speed steel (HSS) or black oxide cannot cut ceramic glaze or clay. They will slide off the surface, dull instantly due to the extreme hardness of the tile, and generate heat that will crack the tile. You must use a specialized carbide-tipped or diamond-grit bit.

How do you drill a hole in tile that is already installed on a wall?

To drill into installed tile, apply painter's tape over the target spot, keep a water-soaked sponge pressed against the side of the bit to catch dust and cool the tool, and run a variable-speed drill at a low RPM. Once the bit passes through the tile and hits the cement board or studs behind it, switch to a standard wood or masonry bit to avoid burning out your expensive diamond bit on the wall framing.

What is the best drill speed for ceramic tile?

The optimal speed for drilling ceramic tile is between 100 and 600 RPM. Larger diameter bits require slower speeds (100 to 300 RPM), while smaller bits (under 1/4 inch) can run up to 600 RPM. Never run your drill at full speed, as high RPMs cause rapid heat buildup and premature bit failure.

How do I avoid cracking the tile when drilling close to the edge?

Drilling within 3/4 inch of a tile's edge is highly risky due to lateral tension. To minimize the risk of cracking, use a brand-new diamond-grit core bit, run it at very low speed, apply zero downward pressure, and use a continuous stream of cold water to keep the tile completely cool. If possible, make this cut before the tile is installed, using a wet tile saw with a plunge cut capability instead of a drill.
