Master Guide: How To Find Phone Model And Access The Device Setup Screen

Accessing a phone's model information requires navigating to the About Phone or General section within the system settings, while reaching the initial setup screen demands a factory data reset to trigger the Out-of-Box Experience (OOBE). Users must ensure battery levels exceed 50% and cloud-based activation locks are disabled to successfully complete these administrative tasks without encountering hardware or security bricking.

Pre-Configuration Checklist and Technical Prerequisites

Before attempting to locate deep system specifications or initiating a factory-level reset to reach the setup screen, you must stabilize the environment to prevent data loss or permanent device lockout. Understanding the distinction between the Model Name (marketing name) and the Model Number (manufacturer-specific alphanumeric string) is critical for firmware flashing, parts ordering, or troubleshooting software compatibility.

The following checklist identifies the necessary tools, information, and status benchmarks required for professional-grade device management:

• Power Stability: A minimum of 50% battery charge or a dedicated 15W+ power supply connected via USB-C or Lightning cable to prevent power failure during partition wiping.
• Credential Verification: Valid login credentials for the primary Google Account (for Android Factory Reset Protection) or Apple ID (for Find My iPhone/Activation Lock) to avoid post-reset security blocks.
• Backup Infrastructure: Active cloud sync (iCloud, Google One, or OneDrive) or a local physical backup via iTunes/Finder or Android File Transfer to preserve user data before triggering the setup screen.
• Hardware Inspection Tools: A high-lumen light source or magnifying glass to read micro-engraved regulatory text on the chassis if the screen is unresponsive.
• Estimated Duration: 5 to 10 minutes for model identification; 15 to 30 minutes for a full system reset and return to the setup screen.

Detailed Protocols for Model Identification and System Reset

Finding the phone model and the initial setup screen involves distinct workflows depending on the device state. Whether the phone is fully operational or locked behind a forgotten passcode, these protocols provide a path to the necessary technical menus.

Step 1: Identifying the Phone Model via Software Interface

If the device is functional and unlocked, the software interface provides the most accurate data regarding the specific variant and regional hardware configuration.

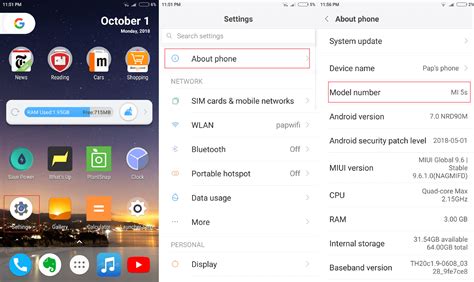

1. For Android Devices: Open the Settings application and scroll to the absolute bottom of the menu. Select About Phone or About Device. Here, you will find the Model Name (e.g., Galaxy S23 Ultra) and the Model Number (e.g., SM-S918B). Note that tapping Software Information may be required on some OEM skins to see the baseband version and build number.
2. For iOS Devices: Navigate to Settings, select General, and then tap About. The Model Name and Model Number are listed in the top section. Tapping the Model Number will toggle between the part number (e.g., MQ3D3LL/A) and the regulatory model number (e.g., A2651).
3. Cross-Platform Search: Use the search bar within the Settings menu and type "Model" to jump directly to these sub-sections if the manufacturer has customized the menu layout.

Step 2: Extracting Hardware Identifiers from Physical Chassis

In scenarios where the display is non-functional or the device is locked, you must rely on physical markers to identify the model.

1. Regulatory Engravings: On older iPhones (iPhone 7 and earlier) and many Android devices, the model number is laser-etched on the lower back of the chassis. Look for a string starting with "A" or "SM-".
2. SIM Tray Inspection: For modern iPhones (iPhone 8 through iPhone 14) and many premium Android phones, the model number is printed inside the SIM card tray slot. Remove the tray and use a bright light to inspect the upper edge of the internal cavity.
3. IMEI Lookup: Locate the 15-digit IMEI number on the back of the device or the SIM tray. Enter this number into an authoritative GSMA-verified database to retrieve the exact hardware specifications, manufacture date, and warranty status.

Step 3: Triggering the Setup Screen via System Settings

To return a phone to the out-of-box setup screen while the OS is accessible, you must perform a "Factory Data Reset." This process wipes all user partitions and returns the firmware to its original state.

1. Android Workflow: Go to Settings > System > Reset Options (or Settings > General Management > Reset on Samsung). Select Erase all data (factory reset). Confirm your identity via PIN or biometric authentication to initiate the wipe.
2. iOS Workflow: Go to Settings > General > Transfer or Reset iPhone. Select Erase All Content and Settings. You will be prompted to upload data to iCloud before the final wipe occurs.
3. Execution: Once confirmed, the device will reboot, show a progress bar (often the brand logo with a loading circle), and eventually boot into the "Hello" or "Welcome" screen, which is the official setup interface.

Step 4: Accessing the Setup Screen via Hardware Recovery Mode

If the device is locked or the OS is corrupted, you must bypass the standard UI to reach the setup screen using a hardware key combination.

1. Android Recovery Mode: Power off the device. Simultaneously press and hold the Power Button and Volume Up (or Volume Down, depending on the manufacturer like Motorola or Pixel). When the bootloader or "No Command" screen appears, hold Power and tap Volume Up to enter the blue text menu. Use volume keys to select "Wipe data/factory reset" and press Power to confirm.
2. iPhone Recovery/DFU Mode: Connect the iPhone to a computer. For iPhone 8 and later, press and release Volume Up, press and release Volume Down, then hold the Side Button until the recovery screen (computer icon) appears. Use iTunes or Finder to select "Restore," which downloads the latest firmware and forces the device back to the setup screen.

Warning: Performing a hardware-level reset on modern devices will trigger Factory Reset Protection (FRP) or Activation Lock. You must know the previous owner's account details to pass the setup screen once it appears.

Hardware Identification and Reset Specification Matrix

The following table outlines the standard identification locations and the specific key combinations required to force a return to the setup screen for major manufacturers.

Deployment Failure Scenarios and Resolution Strategies

Navigating to the setup screen or identifying a model is not always a linear process. Hardware failures or security barriers often intervene.

• Scenario: The device is stuck on a "Verify Your Account" screen after a reset.




  • Root Cause: Factory Reset Protection (FRP) is active because the Google or Apple account was not removed before the reset was performed via hardware buttons.
  • Actionable Fix: Log in with the original credentials used on the device. If the password is forgotten, use the "Forgot Password" flow on a separate computer. If you purchased the device used, you must contact the seller to remove the device from their account remotely via iCloud.com or Google's "Find My Device" portal.

• Scenario: The hardware buttons (Volume/Power) are unresponsive, preventing Recovery Mode.




  • Root Cause: Physical oxidation or mechanical failure of the tactile switch underneath the button cover.
  • Actionable Fix: Use a software-based "reboot to recovery" command via ADB (Android Debug Bridge). Connect the phone to a PC with USB Debugging enabled and run the command adb reboot recovery. For iOS, use a third-party utility designed to force Recovery Mode over a lightning/USB-C connection.

• Scenario: The model number in Settings does not match the external casing.




  • Root Cause: The device has undergone a "housing swap" or refurbishment where a different model's logic board was placed in a different chassis.
  • Actionable Fix: Trust the software-reported Model Number in the "About Phone" menu over the physical engraving, as the software reflects the actual motherboard and processor capabilities.

• Scenario: The phone enters a "Bootloop" when trying to reach the setup screen.




  • Root Cause: Corrupt system partition or failing flash storage (NAND) preventing the OOBE from loading.
  • Actionable Fix: Flash the original factory image using a PC-based tool (Odin for Samsung, Google Flash Tool for Pixel). This overwrites the corrupted partitions and forces the setup screen to initialize from a clean state.

Frequently Asked Questions

How do I find my phone model if the screen is completely black?

Connect the device to a computer. On a Mac, the model will appear in the Finder sidebar or System Report (USB section). On Windows, check the Device Manager under "Portable Devices" or use a tool like 3uTools (iOS) or an IMEI checker if you can retrieve the number from the SIM tray.

Does a factory reset delete the phone's model information?

No, the model number and hardware specifications are hard-coded into the device's Read-Only Memory (ROM) or motherboard. A factory reset only clears the user data partition and cache, leaving the identity and system firmware intact.

Can I access the setup screen without deleting my apps and photos?

The initial setup screen (OOBE) is designed specifically for a "clean" device. You cannot return to the official welcome/setup flow without wiping the device. However, you can change many of those initial settings (Wi-Fi, accounts, privacy) individually within the standard Settings menu.

Why is the model number on my phone different from the one on the box?

Ensure you are looking at the Model Number (e.g., A2651) and not the Serial Number or the Part Number. If they truly differ, the box may not belong to that specific device, which is common in secondary market sales.

Is the setup screen the same as the lock screen?

No, the lock screen is a security layer for an active user account. The setup screen is a system-level wizard that appears only when the phone has no user data, allowing you to select language, connect to Wi-Fi, and sign in to a primary account.
