How To Measure Brake Rotors: A Professional Guide To Determining Serviceability
Measuring brake rotors requires precision to determine if a component meets the manufacturer’s minimum thickness specification, known as the discard thickness. By utilizing a micrometer at multiple radial points around the rotor surface and accounting for total lateral runout, technicians can accurately assess whether to machine or replace the braking hardware to ensure optimal vehicle safety and performance.
Essential Preparation and Precision Equipment Requirements
Before beginning the inspection, ensure the vehicle is secured on a level surface or lift. Never attempt to measure rotors while they are hot, as thermal expansion will lead to inaccurate readings. Brake rotors must be cool to the touch to align with standard measurement protocols. Accuracy is paramount; a variance of even a few thousandths of an inch can be the difference between a safe braking system and one prone to heat fade or structural failure.
- Essential Precision Tools:
- Outside Micrometer (0-4 inch or 0-100mm range): This is the only tool accurate enough to measure thickness. Do not use standard calipers, as they lack the necessary precision and do not account for the outer edge ridge.

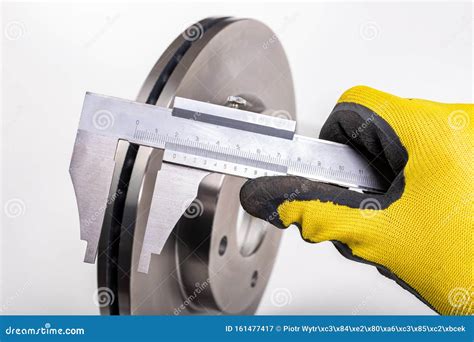

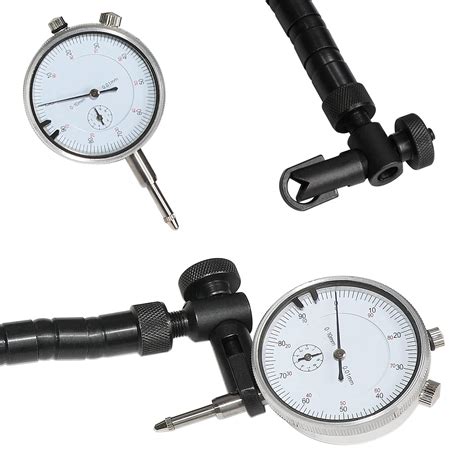

- Dial Indicator with Magnetic Base: Required for measuring lateral runout (the "wobble" of the rotor).
- Brake Cleaner and Shop Rags: To remove debris, rust, or pad material buildup that creates false thickness readings.
- Wire Brush: To remove scale from the rotor hat and edges.
- Manufacturer Service Manual: The ultimate authority for your specific vehicle's minimum thickness (discard) specifications.
The Technical Procedure for Measuring Brake Rotor Thickness
Step 1: Cleaning and Inspection
Before taking any measurements, use a wire brush to remove rust, road grime, and old brake pad material from the friction surfaces of the rotor. If debris is left on the surface, the micrometer will register a false high reading. Once the surfaces are clean, perform a visual inspection for heat checking, deep scoring, or cracks. If cracks are visible that exceed 1mm in depth, the rotor must be replaced regardless of the thickness reading.
Step 2: Calibrating the Micrometer
Ensure your micrometer is zeroed correctly. Close the anvils together and confirm the barrel indicates exactly zero. If the micrometer is not calibrated, all subsequent measurements will be invalid.
Step 3: Measuring Thickness at Multiple Points
Place the micrometer anvils over the rotor friction surface. Measure at least eight points around the circumference of the rotor, approximately 10 to 15 millimeters from the outer edge. Avoid measuring the very outer lip where the brake pad does not make contact, as this area remains thick while the friction surface wears down.
Pro-Tip: Always measure the thinnest point found during your rotation. If the thinnest point is at or below the manufacturer’s minimum discard thickness, the rotor is unsafe and must be replaced immediately.
Step 4: Measuring Lateral Runout
Lateral runout refers to the side-to-side movement of the rotor as it rotates. Secure a dial indicator to the steering knuckle or a fixed chassis component so the plunger rests against the rotor surface, approximately 10mm from the outer edge. Zero the indicator and slowly rotate the rotor a full 360 degrees. Watch the needle for the maximum deviation.
Warning: Excessive runout will manifest as a pulsating brake pedal during deceleration. If the runout exceeds the factory specification—usually 0.003 to 0.005 inches—the rotor may need to be resurfaced or replaced to eliminate pedal vibration.
When to Replace Brake Rotors: A 2026 Guide for Drivers
Technical Specifications and Comparative Thresholds
Understanding the relationship between rotor mass and thermal capacity is critical for long-term reliability. The following table illustrates typical threshold parameters for passenger vehicle brake systems.
| Measurement Metric | Tool Required | Critical Threshold | Result if Exceeded |
|---|---|---|---|
| Rotor Thickness | Outside Micrometer | Below Discard Spec | Structural failure or fade |
| Lateral Runout | Dial Indicator | > 0.005 inches | Pedal pulsation/vibration |
| Surface Parallelism | Micrometer (at 4 pts) | Variance > 0.0005" | Uneven pad wear/noise |
| Rust/Corrosion | Wire Brush/Caliper | > 30% of surface area | Reduced friction coefficient |
Troubleshooting Common Measurement and Wear Failures
- Root Cause: Tapered Wear
- Failure: The rotor is significantly thinner at the outer edge than at the hub.
- Actionable Fix: This is often caused by a sticking brake caliper slide pin. Clean and lubricate the slide pins or replace the caliper bracket assembly before installing new rotors.
- Root Cause: Thickness Variation (DTV)
- Failure: The rotor measurement fluctuates significantly when rotated.
- Actionable Fix: DTV is almost always the result of improper wheel lug nut torque. Always use a calibrated torque wrench to tighten lug nuts in a star pattern to prevent uneven clamping forces that warp rotors.
- Root Cause: Deep Scoring/Grooving
- Failure: Visible deep channels in the metal.
- Actionable Fix: If grooves exceed 0.010 inches in depth, the rotor cannot be safely resurfaced. Replace the rotor and investigate if the brake pads were left in service too long, causing the backing plate to contact the rotor.
Frequently Asked Questions
Can I use digital calipers to measure brake rotors?
Standard digital calipers are generally insufficient for measuring brake rotor thickness because their flat jaws will bridge the outer lip of the rotor, leading to inaccurate, high readings. An outside micrometer with specialized anvils is the industry-standard tool for this procedure.
What happens if I drive on rotors below the discard thickness?
Operating a vehicle with rotors below the discard thickness increases the risk of thermal failure and mechanical fatigue. Thin rotors have less mass to dissipate heat, leading to brake fade during heavy use and a higher probability of the rotor cracking or shattering under extreme braking pressure.
Is it always necessary to resurface rotors when changing pads?
It is not mandatory, but it is highly recommended if the surface is glazed or uneven. If the rotor is within specifications and free of deep grooves, you can perform a non-directional finish with emery cloth to help the new pads bed in, provided the lateral runout remains within factory limits.
Why does my steering wheel shake when I brake?
Steering wheel vibration during braking is typically caused by excessive lateral runout or thickness variation. When the rotor is not perfectly flat, the brake pads are pushed in and out as the rotor spins, transmitting a pulsation through the hydraulic lines to the brake pedal and steering rack.
Ensure Your Stopping Power
Regular inspection of your brake system using these precise measurement techniques is the most effective way to maintain vehicle safety and braking confidence. Consult your owner's manual for your specific model's discard specifications today and ensure your hardware meets the standards required for the road ahead.
