How To Replace A Thermocouple On A Gas Furnace

A faulty thermocouple is the most common reason a gas furnace pilot light refuses to stay lit, cutting off millivoltage current to the gas safety valve. Replacing this component requires shutting off the gas and power supply, unthreading the old sensor from the burner assembly and gas valve, and installing a direct OEM-matched replacement.

Pre-Operation & Equipment Checklist

Tackling a gas furnace repair requires strict adherence to safety protocols, precise tools, and an understanding of low-voltage electrical systems. A thermocouple acts as a safety device generating a small electrical charge (typically between 25 and 30 millivolts) when heated by the pilot flame. If the flame goes out, the millivolt output drops, causing the safety valve to snap shut and prevent raw gas from leaking into the home.

• Essential Gear, Tools, and Materials:


  • Exact-match replacement thermocouple (universal models work, but exact OEM length and fitting types ensure a secure seal)
  • Open-end wrench set (usually 3/8-inch and 7/16-inch)
  • Multimeter capable of reading millivolts (DCmV)
  • Wire brush or fine emery cloth
  • Flashlight or headlamp
  • Work gloves and safety glasses
• Mandatory Prerequisite Knowledge and Standards:


  • Familiarity with standing pilot gas valves (Honeywell, Robertshaw, or White-Rodgers)
  • Understanding of gas leak detection principles using commercial leak-detection fluid (never open flames)
  • Compliance with National Fuel Gas Code (NFPA 54) standards regarding appliance servicing
• Budget and Duration Benchmarks:


  • Financial investment ranges from $15 to $30 for parts.
  • Time investment requires approximately 30 to 45 minutes for a complete, tested installation.

Step-by-Step Furnace Thermocouple Replacement Procedure

Step 1: Secure the Work Area and Shut Off Utilities

Before touching any components inside the furnace cabinet, eliminate all energy sources feeding the appliance. Locate the standard wall thermostat and switch the system mode from heat to off. Proceed to the furnace unit, remove the service access doors, and turn off the toggle switch mounted on the exterior of the chassis or junction box. Finally, locate the manual gas shutoff valve on the black iron pipe leading into the gas control valve and rotate it ninety degrees until it sits perpendicular to the pipe, cutting off the natural gas supply.

Warning: Never attempt to service a gas furnace without fully turning off the gas supply and disconnecting electrical power. Working on live gas lines or energized control boards risks explosion, electrocution, and severe injury.

Step 2: Access the Burner Compartment and Pilot Assembly

Remove the lower burner compartment door, which is typically held in place by thumbscrews, magnetic latches, or spring clips. Look inside the bottom cavity to locate the main burners, the pilot assembly bracket, and the gas control valve. Inspect the layout to map out how the thin copper capillary tube of the thermocouple runs from the burner bracket back to the threaded port on the side of the gas valve. Ensure the area has cooled down completely, as the combustion chamber and pilot hood retain high temperatures long after the furnace has shut down.

Step 3: Disconnect the Old Thermocouple from the Gas Valve

Locate the rear or side connection where the brass threaded nut of the thermocouple enters the gas control valve. Using an open-end wrench, carefully loosen the fitting in a counterclockwise direction. Expect minor resistance initially, but avoid using excessive torque or pipe wrenches, as the aluminum or brass valve body can easily strip. Once unthreaded completely, pull the copper line gently away from the valve housing.

Pro-Tip: Loosen the gas valve connection finger-tight only after the initial wrench turn. Over-tightening during removal can deform the internal ferrule, making it difficult to thread the new component later.

Step 4: Remove the Defective Thermocouple from the Burner Bracket

Follow the length of the thermocouple to the burner assembly where the sensing bulb sits directly inside the pilot flame. Depending on the manufacturer, the probe is secured using a mounting clip, a small retaining nut beneath the pilot bracket, or a push-in friction fit. Remove any securing hardware and gently pull the sensor backward out of its mounting bracket. Take note of the exact insertion depth and angle so the new probe sits in the exact same position relative to the pilot flame.

Step 5: Install and Align the New Thermocouple

Insert the probe tip of the new thermocouple into the pilot mounting bracket, ensuring it matches the insertion depth of the old unit. Secure it with the retaining clip or nut, taking care not to bend or kink the fragile copper capillary line along its route. The tip of the thermocouple must sit squarely in the middle third of the pilot flame to receive proper thermal excitation. A misaligned probe will fail to generate sufficient millivoltage, leading to intermittent lockouts.

Step 6: Connect the New Unit and Test System Operation

Thread the brass nut of the new thermocouple into the pilot port on the gas control valve by hand to prevent cross-threading. Tighten it gently with a wrench—snug plus a quarter turn is generally sufficient; over-tightening crushes the internal copper seal and ruins continuity. Turn the gas supply back on, restore electrical power, and reset the gas valve to the pilot position to light the pilot light. Hold the reset button down for 60 seconds to allow millivolts to build, release it, switch the valve to the on position, and test the system by raising the thermostat.

Thermocouple Specifications and Furnace Component Comparison

Common Site Failures and Field Fixes

• Root Cause: Loose connection at the gas valve safety magnet. Even a fraction of a millimeter of play breaks the micro-voltage circuit, causing the valve to drop out.


  • Actionable Fix: Turn off the system, unscrew the thermocouple nut from the gas valve, clean the contact point with a dry cloth, and thread it back in, ensuring it is hand-tightened before applying a final quarter-turn with a wrench.
• Root Cause: Carbon buildup or soot insulating the thermocouple tip. When the flame burns dirty due to improper primary air adjustment, carbon coats the sensor and blocks heat transfer.


  • Actionable Fix: Turn off all utilities, remove the thermocouple, and gently scour the sensing tip using a fine emery cloth or wire brush to expose bare metal before reinstalling.
• Root Cause: Pilot flame is too weak or improperly aimed. If the gas orifice is partially clogged with dust, the flame fails to envelope the top third of the thermocouple tip.


  • Actionable Fix: Clean the pilot orifice using a specialized wire brush or compressed air, and adjust the pilot flame adjustment screw on the gas valve to achieve a crisp, blue, roaring flame.
• Root Cause: Defective gas safety shutoff valve magnetic coil. If a brand-new thermocouple still fails to hold the pilot, the internal electromagnet within the gas valve may have failed.


  • Actionable Fix: Test the millivolt output under load; if the output exceeds 15 mV while the pilot is held down and the valve still trips upon release, replace the entire gas control valve assembly.

Frequently Asked Questions

How do I know if my thermocouple is definitely broken?

A failing thermocouple typically allows you to light the pilot flame while holding down the reset button, but the moment you release the button after a minute, the flame immediately extinguishes. You can confirm the failure using a digital multimeter set to DC millivolts by connecting the leads to the thermocouple terminal and the outer copper line while the pilot is lit; a reading below 12 millivolts under load indicates a dead component.

Can I clean an old thermocouple instead of replacing it?

Yes, if the failure is caused by soot or oxidation coating the exterior sensing probe, cleaning it with a fine emery cloth can temporarily restore function. However, because thermocouples experience thermal fatigue and internal degradation over years of exposure to extreme heat, replacement is inexpensive and provides a much more reliable, long-term solution.

Are universal thermocouples safe to use on my furnace?

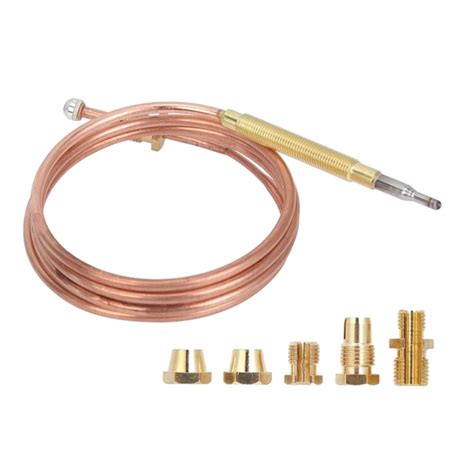

Universal thermocouples are completely safe and widely used by technicians as long as you select the correct length and use the appropriate adapter fittings included in the kit. Always verify that the replacement probe length and thread pitch match your specific gas valve manufacturer's specifications to ensure a gas-tight seal.

Why does my pilot light stay lit, but the main burners won't ignite?

If the pilot stays lit, your thermocouple is functioning correctly and generating enough millivoltage to keep the pilot safety valve open. The failure of the main burners to ignite usually points to a faulty wall thermostat, a tripped limit switch, a defective gas valve main operator, or a blocked pressure switch in high-efficiency systems.

What should I do if I smell gas while working on the furnace?

Immediately stop what you are doing, turn off the manual gas shutoff valve, and evacuate the building if the odor is strong. Do not flip any electrical switches, use lighters, or operate cell phones inside the area. Call your local gas utility provider or emergency services immediately from a safe location outside.

Keep your heating system operating reliably through every winter season by performing proactive seasonal checks on all safety controls and gas connections. If complicated diagnostic hurdles arise or gas leaks persist, reach out to a licensed HVAC professional for immediate technical assistance.
