How To Reset The Health O Meter Scale: A Professional Calibration And Troubleshooting Guide

To reset a digital Health o meter scale, perform a power cycle by removing the batteries for 60 seconds or initiate the auto-calibration sequence by stepping on the platform briefly and stepping off until the display shows "0.0". Mechanical physician scales require manual zeroing via the balance screw located at the side of the weigh beam to ensure the pointer rests exactly in the center of the trig loop.

Essential Requirements for Precision Measurement and Calibration Stability

Before attempting to reset or recalibrate a Health o meter device, you must ensure the environment and the equipment meet specific technical criteria. Digital load cells are sensitive to temperature fluctuations, surface leveling, and electromagnetic interference. Whether you are using a professional physician beam scale or a high-precision digital bathroom model, the following prerequisites are mandatory for achieving a NIST-traceable level of accuracy.

• Primary Equipment and Tools: Fresh high-quality alkaline batteries (typically 9V, AA, or CR2032 depending on the model), a set of NIST-certified calibration weights (for professional verification), and a non-marring flathead screwdriver for mechanical beam adjustments.
• Environmental Standards: The scale must be placed on a non-compressible, level surface. High-pile carpeting or uneven tile can cause "deflection" in the load cell sensors, leading to weight fluctuations of up to 10% of the total mass.
• Duration and Benchmarks: A standard digital reset takes approximately 2 to 5 minutes, while a full mechanical calibration of a balance beam may require 10 minutes. The goal is to reach a precision threshold of +/- 0.1 lbs (0.1 kg) for digital units and +/- 0.25 lbs for high-capacity mechanical beams.

Technical Protocols for Resetting and Synchronizing Health o Meter Models

The reset process varies significantly between the consumer-grade digital sensors and the industrial-grade mechanical components found in clinical settings. Follow the specific protocol matching your hardware architecture to restore factory-standard performance.

Step 1: Executing the Digital Initialization Sequence (Auto-Calibration)

Modern Health o meter digital scales utilize a "Step-On" technology that requires periodic synchronization with local gravity and the surface they rest upon. This is the most common "reset" requested by users when the scale provides inconsistent readings after being moved.

1. Place the scale on a hard, flat floor. Avoid all rugs, mats, or linoleum with thick padding.
2. Apply enough pressure to the center of the scale with one foot to wake the display, then immediately remove your foot.
3. Observe the display as it cycles through its internal checks. It may show "8888" or a scrolling pattern before settling on "0.0".
4. Once the "0.0" is stable, wait for the display to turn off automatically. The internal strain gauges are now tared to the weight of the platform itself.
5. Step onto the scale with both feet, standing still in the center. Your reset measurement is now complete and stored in the temporary cache.

Step 2: Performing a Hard Power Cycle and Capacitor Discharge

If the digital display is frozen, showing an error code like "Err," or failing to respond to touch, a hard reset is required to clear the volatile memory. This process forces the internal Analog-to-Digital Converter (ADC) to reboot.

1. Turn the scale over and open the battery compartment. Remove all batteries.
2. While the batteries are removed, press and hold the "Start" or "Unit" button (if available) for 10 seconds to discharge any residual electricity stored in the capacitors. If there is no button, let the scale sit without batteries for at least 60 seconds.
3. Clean the battery contact points with a dry cotton swab to ensure no oxidation is impeding the voltage.
4. Reinsert fresh batteries, ensuring the polarity (+/-) matches the diagrams inside the compartment.
5. Place the scale back on the floor and perform the "Step 1" initialization sequence described above before weighing yourself.

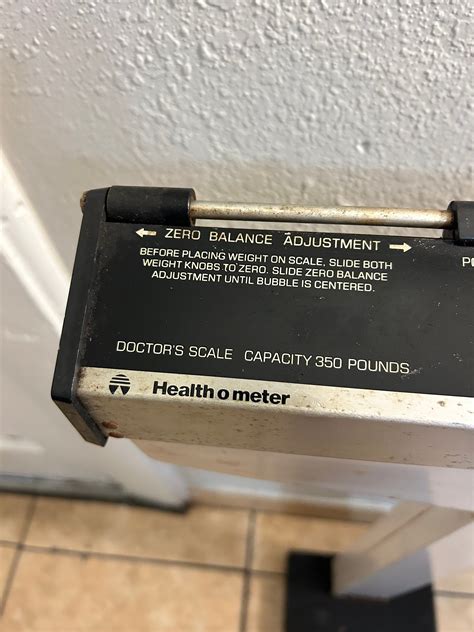

Step 3: Zeroing the Mechanical Physician Balance Beam

Professional Health o meter scales, such as the 402EXP series, do not use batteries but require a physical reset of the equilibrium point. This is necessary if the pointer does not hover in the center of the trig loop when both the large and small poises (weights) are set to zero.

1. Slide both the lower (large) poise and the upper (small) poise to the far left "0" position.
2. Release the beam and allow it to swing freely. Observe the pointer at the far right of the beam.
3. If the pointer comes to rest above or below the center of the trig loop, locate the zero adjustment screw. This is typically found on the left side of the beam or near the pivot point.
4. Using your fingers or a small screwdriver, turn the screw slowly. Turning it "in" (clockwise) usually lowers the pointer, while turning it "out" (counter-clockwise) raises it.
5. Continue making minute adjustments until the beam oscillates equally above and below the center line, eventually coming to rest exactly in the middle.

Step 4: Gravity Compensation and Unit Synchronization

In some high-end professional digital models, a reset may involve switching between Metric (kg) and Imperial (lb) units to force a recalculation of the software's conversion algorithm.

1. Locate the "Unit" or "KG/LB" button, usually found on the underside of the scale near the battery door.
2. While the scale is active and showing "0.0", press the button to switch from your current unit to the alternative.
3. Step on the scale and take a measurement in the new unit.
4. Step off, wait for the scale to clear, and then switch back to your preferred unit. This "toggles" the firmware and can resolve rounding errors within the internal microprocessor.

Technical Specifications and Calibration Thresholds

The following table outlines the expected performance metrics for Health o meter scales. If your device falls outside these parameters after a reset, the load cells may be permanently fatigued or damaged.

Resolving Performance Failures and Persistent Errors

Even after a successful reset, certain mechanical or electronic failures can persist. Identifying the root cause of these issues is essential for maintaining medical-grade accuracy.

• Inconsistent Readings (The "Floating Weight" Issue)




  • Root Cause: The scale is placed on a surface with microscopic "give," or the feet of the scale are contaminated with debris.
  • Actionable Fix: Move the scale to a concrete, tile, or hardwood surface. Inspect the four feet on the bottom; ensure they move freely and are not obstructed by hair, dust, or floor wax buildup.

• Display Showing "Lo" or Fading Characters




  • Root Cause: Insufficient voltage from the batteries to power the LCD and the load cell bridge.
  • Actionable Fix: Replace batteries immediately. Even if the display "looks" okay, the load cells require a stable voltage to produce accurate resistance readings. Low voltage is the primary cause of inaccurate digital weights.

• "Err" Message During Initialization




  • Root Cause: Weight was applied to the platform during the zeroing process, or the internal sensors are overloaded.
  • Actionable Fix: Clear the platform completely and perform a hard reset (battery removal). Ensure nothing is touching the scale's edges or the underside during the "0.0" countdown.

• Mechanical Beam Drift




  • Root Cause: The scale was moved abruptly, causing the pivot (knife-edge) to shift out of its seat.
  • Actionable Fix: Inspect the "H" hangers and the main pivot point under the platform. Ensure the beam is seated properly in its notches before performing the zero-screw adjustment.

Frequently Asked Questions

Why does my Health o meter scale show a different weight every time I move it?

When you move a digital scale, the internal sensors must recalibrate to the new surface's level and texture. To fix this, always perform the "Step-on/Step-off" initialization after moving the device to ensure the software tares out the weight of the platform in its new position.

How often should I reset or calibrate my scale?

For household use, you should initialize the scale whenever it is moved or every three months to account for battery drainage. In professional clinical settings, Health o meter recommends a daily zero-check and a formal calibration with certified weights every six to twelve months.

Can I reset my scale if it was stored on its side?

Storing a digital scale vertically can cause the load cell components to shift slightly. After storing it on its side, place it flat on the floor and let it sit for 30 minutes to allow the sensors to settle, then perform a hard power reset by removing the batteries for one minute.

Does temperature affect the accuracy of the scale?

Yes, extreme cold or heat can affect the electrical resistance within the strain gauges and the viscosity of the lubricants in mechanical beams. Always use the scale in a temperature-controlled environment and allow it to acclimate for two hours if it has been moved from a garage or cold storage.

What is the difference between "Tare" and "Reset"?

"Tare" is used to subtract the weight of an object (like a basket or clothes) from the total, whereas a "Reset" restores the scale to its factory zero-point. A reset clears the internal memory and recalibrates the sensor's baseline without any external mass applied.

Optimize Your Health Tracking Precision

Maintaining a properly calibrated Health o meter scale is the foundation of accurate health data and clinical reliability. For those requiring the highest levels of accuracy, regular synchronization ensures that every pound or kilogram measured is a true reflection of your progress.
