How To Set Amp Gain Properly Using A Multimeter
Setting an amplifier gain correctly is not a volume knob; it is a level-matching control designed to calibrate the input sensitivity of the amplifier to the maximum undistorted pre-out voltage of the head unit. By calculating the exact target AC voltage using Ohm's Law and a digital multimeter, you eliminate audible distortion, protect your voice coils from thermal damage, and maximize the dynamic range of your mobile audio system.
Pre-Operation & Equipment Checklist
Achieving a clean, distortion-free audio output requires methodical planning and precise measurements. Setting your amplifier gain by ear invites speaker-destroying clipping, making proper gear selection and mathematical preparation mandatory before touching a single control.
- Essential Gear, Tools, and Materials:
- Digital Multimeter (DMM) capable of measuring True RMS AC voltage with a high sampling rate.
- Test tones recorded at 0dBFS (decibels relative to full scale) for maximum output, typically 50Hz for subwoofers and 1000Hz for full-range speakers.
- A USB drive or auxiliary input source containing your uncompressed WAV test tone tracks.
- A flathead alignment screwdriver or precision tuning tool for adjusting gain potentiometers.
- Vehicle jumper cables or a stabilized 12V power supply to maintain steady battery voltage during testing.
- Mandatory Prerequisite Knowledge and Standards:
- Working knowledge of Ohm's Law, specifically the formula $V = \sqrt{P \times R}$ where $V$ is voltage, $P$ is continuous RMS power handling, and $R$ is nominal impedance.
- Understanding of gain staging, source unit pre-out voltage thresholds, and the difference between RMS power and peak power ratings.
- Verification that all crossover filters, bass boosts, and equalizer settings on both the head unit and amplifier are completely disabled or set to neutral flat positions.
- Estimated Budget and Duration Benchmarks:
- Budget: Under $30 for a reliable True RMS digital multimeter if you do not already own one.
- Duration: Approximately 30 to 45 minutes of focused bench or vehicle testing.
Step-by-Step Amplifier Gain Calibration Workflow
Step 1: Disconnect All Speaker Outputs and Initialize Head Unit Settings
Disconnect the speaker wiring harnesses or RCA speaker-level outputs directly from the amplifier terminals to prevent accidental over-excursion or acoustic damage while measuring high-amplitude test tones. Turn off all active loudness enhancements, dynamic compression settings, bass boosts, and custom equalizer curves on your head unit or digital signal processor (DSP). Set the source unit's balance and fader controls to their precise center points.
Warning: Leaving speakers connected while outputting continuous 0dB test tones at high voltage benchmarks can instantly overheat voice coils or destroy fragile tweeters. Always isolate the amplifier output channels before voltage testing.
Step 2: Calculate Your Target AC Voltage Using Ohm's Law
Determine your exact target output voltage using the published RMS power rating of your amplifier matched to the true dynamic impedance of your speakers. Locate the continuous RMS wattage your amplifier delivers at your specific speaker load (for example, 500 Watts RMS at a 2-ohm mono load). Multiply the RMS power wattage ($P$) by the nominal impedance ($R$), and calculate the square root of that product. For 500 Watts into 2 ohms, $500 \times 2 = 1000$, and the square root of 1000 is 31.62 Volts AC.
Pro-Tip: Always use the actual measured DC resistance of your speaker voice coils with a multimeter rather than the nominal rating (e.g., a 4-ohm nominal speaker often measures around 3.2 ohms DC) to achieve a more precise thermal calculation.
Step 3: Establish Maximum Undistorted Head Unit Volume
Turn your vehicle accessory power on and start the engine to maintain a steady system voltage of roughly 13.8 to 14.4 volts. Insert your test tone track (50Hz for subwoofers or 1000Hz for midrange/tweeters) and set your head unit's volume control to 75 to 85 percent of its maximum absolute volume scale. This threshold represents the point just below where the internal head unit pre-amplifier introduces clipped square waves into the RCA outputs.

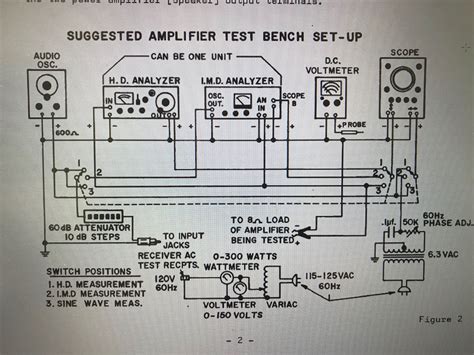

Step 4: Measure and Adjust Amplifier Gain Potentiometer
Set your digital multimeter to measure alternating current (AC Voltage / VAC) and place the meter probes directly into the positive and negative speaker output terminals of the amplifier channel you are calibrating. Slowly rotate the amplifier gain knob clockwise while playing the looping test tone until the multimeter displays your pre-calculated target voltage value. Once the exact voltage is reached, stop adjusting immediately to prevent premature signal clipping.
