How To Size Earring Cards And Necklace Display Cards Correctly: The Technical Jewelry Packaging Guide

Correctly sizing earring and necklace cards requires analyzing the jewelry's physical dimensions, weight, and drop length to determine the exact cardboard footprint and puncture placements. By adhering to industry-standard dimensions—such as 2" x 2" for stud earrings and 3.5" x 5" for medium pendants—and utilizing a minimum cardstock weight of 14pt (300 gsm), designers prevent structural bowing while maintaining optimal visual clearance of at least 0.25 inches around all margins.

Pre-Production Material Planning and Equipment Specifications

Designing professional jewelry display cards requires careful physical and mechanical preparation. Before drafting a single template, you must establish exact measurements of your physical inventory and assemble tools that allow for high-precision prototyping. Choosing the wrong cardstock density or utilizing inaccurate cutting tools leads to asymmetrical alignments, torn paper fibers, and cards that sag on retail display hooks.

Essential Gear, Tools, and Materials

• Digital Calipers: For measuring jewelry thickness, stud post lengths, hoop diameters, and pendant depths down to 0.1mm.
• Precision Steel Ruler: A 12-inch non-slip metal ruler for marking straight guides and measuring chain drop lengths.
• Prototyping Cardstock: Standard 110lb index cardstock or 14pt cover stock for testing folds, weight tolerances, and hole alignments before final production.
• Heavy-Duty Rotary Cutter or Scoring Board: For clean, non-frayed edges and precise folding channels.
• Specialty Craft Hole Punches: Pliers or punch tools with 1.0mm, 1.5mm, and 2.0mm interchangeable dies to accommodate various wire gauges.
• Euro-Loop or Pegboard Punch: A dedicated punch tool for standard retail hanging slots (usually 1 inch wide with a central notch).

Mandatory Prerequisite Standards

• Paper Caliper Measurement: Understand that paperboard thickness is measured in points (pt), where 1pt equals 0.001 inches. Standard retail cards must use at least 14pt (approximately 300 gsm) for light jewelry, and 16pt to 24pt (350 gsm to 450 gsm) for heavy necklaces or large drops.
• Clearance Margins: A structural safety zone of at least 0.25 inches (6.4mm) must be maintained from the outer edges of the card to any hole, slit, or graphic design element.
• Budget and Duration Benchmarks: The physical prototyping phase typically spans 2 to 4 hours. Material costs range from $0.05 to $0.35 per card depending on production volume, cardstock finishes (such as uncoated Kraft, soft-touch matte, or recycled SBS board), and custom die-cutting.

The Engineering Workflow for Designing Jewelry Card Templates

Step 1: Calculating Jewel Footprints and Border Clearance

To determine the absolute minimum width and height of your card, you must measure the maximum length, width, and depth of the jewelry item when suspended. Lay the jewelry flat on your workspace and measure its outer boundaries using your digital calipers.

Use the following formulas to establish your raw dimensions:

1. Card Width Calculation: Multiply the total width of the jewelry item by 1.5, then add a minimum of 0.5 inches (0.25 inches for both the left and right margins). For twin items like earrings, measure the width of one earring, double it, add your desired spacing between them (typically 0.75 inches), and then add the 0.5-inch border clearance.
2. Card Height Calculation: Measure the vertical drop length from the highest suspension point (such as the ear wire or chain loop) to the lowest tip of the jewelry. Add 0.5 inches for the top header space (to accommodate brand logos or hanging slots) and 0.25 inches for bottom ground clearance.

Pro-Tip: If your earring features a long dangle element (such as a 2.5-inch chandelier design), the card height must be at least 3.25 inches. If the jewelry hangs off the bottom edge, it will snag during transport, collect dirt from retail shelves, and look unprofessional.

Step 2: Designing Hang-Hole Geometry and Pegboard Balance

If your cards will be displayed on pegboard hooks or rotating counter displays, you must integrate a hanging slot. The placement of this slot dictates the card's vertical center of gravity.

1. Measure the exact horizontal midpoint of the card. The hang-hole must be centered perfectly on this vertical axis to prevent the card from tilting to one side when hung.
2. Position the hang-hole 0.25 inches below the top border of the card.
3. Keep the branding graphics situated below or wrapped carefully around the hang-hole to avoid visual clutter.
4. For heavier jewelry (above 1.5 ounces), choose a thick 18pt or 24pt cardstock. This ensures the paper above the hang-hole does not tear or tear-out over time from retail customer handling.

Step 3: Mapping Hole and Slit Placement

The mechanism used to attach jewelry to the card varies depending on whether you are displaying stud earrings, hoop earrings, dangle earrings, or necklaces.

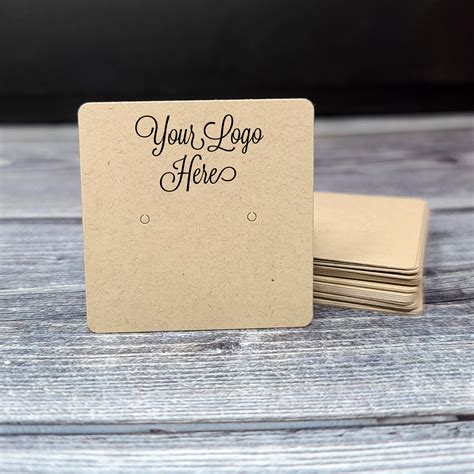

• For Stud Earrings: Punch two small holes spaced exactly 0.75 inches (19mm) apart for small studs, or up to 1.25 inches (32mm) apart for larger designs. Use a 1.0mm punch for fine posts. Ensure these holes are located at least 0.75 inches below the top of the card to leave space for branding.
• For Dangle/Hook Earrings: Create two 1.5mm holes placed near the upper-middle section of the card. Directly above each hole, use a precision knife to cut a micro-slit extending upward at a 45-degree angle to the edge of the card. This allows the ear wire to slide smoothly into place and rest securely in the hole.
• For Necklaces: Cut two angled, downward-sloping slits on the top-left and top-right margins of the card. These slits should sit roughly 0.5 to 0.75 inches below the top corner. Angle the cuts at 30 to 45 degrees relative to the horizontal plane. The depth of each cut should be exactly 0.25 inches. For heavy pendants, add a circular keyhole punch (1.5mm) at the innermost end of the slit to distribute weight and prevent the paper fiber from tearing further.

Warning: Never make necklace slits perfectly horizontal or straight down. Horizontal slits allow the chain to slip out during transit, while vertical slits do not hold the chain at the correct tension, causing the necklace to droop down the face of the card.

Step 4: Structuring the Back Fold and Chain Retention

A common mistake in necklace card design is leaving the excess chain dangling loose behind the card, which leads to nesting, scratching, and severe tangling.

1. Create a score line 1.5 inches below the top of your card if you are creating a fold-over style card.
2. For flat display cards, incorporate a rear paper pouch or fold-down flap. Secure this flap using low-tack adhesive dots or small clear stickers.
3. Wrap the excess chain length around the back of the card, gather it neatly, and tuck it into the rear pouch.
4. Ensure the tension on the front of the card is taut but not overly tight. If the chain is pulled too tightly, it will bow the cardstock forward, distorting your presentation.

Standard Dimensions and Material Thickness Matrix

The following table provides a comprehensive blueprint for matching different styles of jewelry with their corresponding card sizes, paperboard calipers, and structural layout configurations.

Common Structural Failures and Graphic Design Remedies

Cardboard Creasing or Bowing under Weight

• Root Cause: The selected cardstock caliper is too thin (e.g., standard 80lb text paper or 10pt cardstock) to support the physical load of heavy gemstones, metals, or thick chains. Alternatively, the necklace chain is wrapped too tightly around the back of the card.
• Actionable Fix: Upgrade the cardstock to a minimum of 18pt Solid Bleached Sulfate (SBS) or 100% recycled chipboard. If you cannot source thicker paper immediately, double-fold the cardstock at the top or laminate two sheets of 110lb cover stock together using acid-free adhesive to double the structural rigidity.

Chain Slippage and Pendant Tangling

• Root Cause: The entry angles of the top-corner slits are cut too wide, too shallow, or completely horizontally. This design flaw allows the necklace chain to easily slip out of its channels during handling, shipping, or retail browsing.
• Actionable Fix: Redraw your cutting templates to feature inward-facing, diagonal hook slits. The cuts should start on the top edge of the card, go down at a 45-degree angle, and then hook slightly outward. Always bundle the excess chain on the reverse side of the card using a folded paper pocket or a small piece of low-tack jeweler’s tape.

Earring Droop and Forward Tilting

• Root Cause: Punctures for post earrings are too large or placed too high on the card without adequate structural support behind them. For dangle earrings, placing the hole too far above the center of gravity causes the entire card to tilt forward when hung.
• Actionable Fix: Reduce the hole punch size to match your earring post gauge (typically 0.8mm to 1.0mm for standard posts). If using heavy drop designs, glue a small plastic or cardboard reinforcement strip to the back of the card directly over the hole area before punching. This double-layer design prevents the paper fibers from stretching and sagging forward.

Off-Center Retail Hang-Holes

• Root Cause: Failing to calculate the asymmetrical weight distribution of jewelry items, such as a necklace with an off-center pendant or a single-earring card design, which causes the card to lurch sideways on retail pegs.
• Actionable Fix: Perform a physical balance test on a prototype card. Suspend the fully loaded card from a pin or needle placed at different points along the top edge until the card hangs perfectly level. Mark this balanced point and punch your hang-hole or Euro-slot precisely over this calculated center of gravity rather than using the absolute geometric midpoint.

Frequently Asked Questions

What is the standard size for an earring card?

The universal standard size for stud earrings is 2 inches by 2 inches (51mm by 51mm). For larger statement pieces, drop earrings, or hoop earrings, the industry standard shifts to 2.5 inches wide by 3.5 inches tall (64mm by 89mm), which perfectly matches standard business card dimensions and display fixtures.

What weight of paper should I use for earring and necklace cards?

Use a minimum cardstock weight of 14pt (300 gsm) for light earrings and simple chains. For professional retail displays, heavy pendants, or multi-piece sets, use an 18pt (400 gsm) or 24pt (500 gsm) cover stock to prevent the paper from tearing, bending, or bowing under tension.

How do you keep necklaces from sliding off display cards?

To secure necklaces, cut downward-sloping, angled slits at a 45-degree angle on both upper corners of the display card. Additionally, you must secure the excess chain behind the card using a built-in cardboard pouch, an adhesive plastic pocket, or a strip of specialized low-tack painter's tape.

Should earring and necklace cards have a hang-hole?

A hang-hole is highly recommended if your jewelry will be sold in physical retail environments that utilize pegboards, slatwalls, or spinning rack displays. If your products are exclusively displayed in flat glass showcases or shipped in individual gift boxes, you should skip the hang-hole to maximize your branding space.

Elevate Your Jewelry Presentation

To ensure your brand stands out on retail shelves, invest in high-quality materials and precise cutting equipment. Elevate your jewelry presentation by downloading our exact, print-ready vector templates designed specifically for standard earring and necklace cards.
