How To Solder Guitar Pickups: A Professional Guide To Luthier-Grade Wiring

Soldering guitar pickups involves creating a low-resistance metallurgical bond between copper lead wires and electronic components using a 25-40 watt iron and rosin-core solder. Success depends on maintaining a tip temperature between 650°F and 750°F, ensuring all contact points are properly tinned, and achieving a shiny, concave solder fillet that guarantees long-term signal integrity and tonal clarity.

Precision Planning and Technical Gear Requirements

Before heating your iron, you must understand that guitar electronics are sensitive to both heat and static. A botched soldering job does not just look messy; it introduces resistance into your signal chain, leading to high-end loss, unwanted 60-cycle hum, or total signal failure. Professional luthiers approach pickup installation with the same cleanliness and precision as a laboratory procedure.

The primary objective is to facilitate a "cold" mechanical connection before applying heat. This ensures the wires stay in place while the solder flows. You must also account for the specific wiring harness of your instrument, whether it is a traditional passive system, an active preamp-driven circuit, or a complex coil-splitting configuration.

Essential Equipment and Materials

• Soldering Iron: A temperature-controlled station is preferred, but a high-quality 35-watt or 40-watt fixed-wattage iron is the industry standard. Avoid low-wattage (15W) irons as they cannot heat potentiometer casings quickly enough, leading to heat soak that destroys the component.
• Solder: Use 60/40 (Tin/Lead) or 63/37 (Eutectic) rosin-core solder. Lead-free solder requires higher melting points and is generally more difficult for beginners to work with in a guitar cavity.
• Wire Strippers: Precision strippers capable of handling 22 AWG to 24 AWG wire without nicking the copper strands.
• Desoldering Tools: A solder sucker (desoldering pump) or desoldering braid (wick) for removing old factory solder.
• Helping Hands: A small stand with alligator clips to hold wires in place while you work.
• Multimeter: Essential for checking continuity and measuring the DC resistance of the pickups to ensure they are functioning correctly before and after installation.
• Protection: Blue painter’s tape or specialized polishing cloths to cover the guitar’s finish, protecting it from stray solder splashes or iron burns.

Prerequisite Benchmarks

• Estimated Duration: 45 to 90 minutes depending on the complexity of the switching (e.g., Stratocaster vs. Les Paul with push-pull pots).
• Budget: $40–$100 for a complete high-quality toolset if starting from scratch.
• Safety: Always work in a well-ventilated area to avoid inhaling lead fumes and flux smoke.

The Luthier’s Workflow: Executing Precision Pickup Soldering

The following process outlines the transition from a stock instrument to a professionally upgraded electronic suite. Follow these steps meticulously to ensure your joints are vibration-resistant and electronically transparent.

Step 1: Workspace Preparation and Component Protection

Begin by stabilizing the guitar on a flat, padded surface. Remove the strings and the pickguard or control cavity plate. Use painter’s tape to secure a thick cloth or cardboard around the work area. A single drop of molten solder can melt through polyurethane or nitrocellulose finishes in milliseconds.

Once the cavity is exposed, take a high-resolution photograph of the existing wiring. Even if you are following a new schematic, knowing the original ground points and bridge ground location is vital for troubleshooting later.

Step 2: Tinning the Iron and Wires

Tinning is the process of coating a surface with a thin layer of solder to facilitate heat transfer. A dry iron tip will not transfer heat effectively, leading to "long dwells" that fry components.

1. Clean the hot iron tip on a brass sponge or damp cellulose sponge.
2. Apply a small amount of fresh solder to the tip until it is silver and shiny.
3. Strip approximately 1/8 inch of insulation from your pickup leads.
4. Twist the multi-strand copper wires tightly.

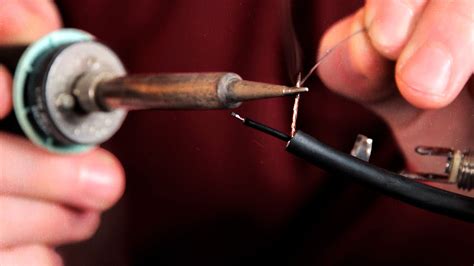

5. Touch the iron to the wire for one second, then touch the solder to the wire (not the iron). The solder should "wick" into the strands instantly.

Pro-Tip: If the solder beads up and rolls off the wire rather than soaking in, the wire is either oxidized or not hot enough. Use a tiny amount of supplemental flux paste if necessary.

Step 3: Preparing Potentiometers and Switches

If you are installing new pickups into existing pots, you must clean the old solder off the back of the potentiometer casings. Use your desoldering pump to clear the lugs of the switch and the volume pots.

For ground connections on the back of a pot, use a small piece of sandpaper (400 grit) to lightly scuff the metal surface. This removes any oxidation or residual oils, allowing the solder to bond to the casing rather than just sitting on top of it.

Step 4: Making the Ground Connections

In guitar wiring, the "ground" is the common return path for the circuit. Most pickups have a black wire (ground) and a colored wire (hot). For humbuckers, you may also have a "shield" wire (bare silver) which must be grounded to the back of the volume pot.

1. Gather all ground wires (pickup ground, bridge ground, and output jack ground).
2. Apply heat to the back of the potentiometer casing with the flat side of your iron tip.
3. Once the casing is hot (usually after 3-4 seconds), flow a small "puddle" of solder onto the casing.
4. While the puddle is molten, press the tinned ground wires into it.
5. Hold the wires perfectly still for 5 seconds until the solder solidifies.

Warning: Do not overheat the pot. If you apply heat for more than 10 seconds, you risk melting the internal plastic wipers, which will cause the pot to become "scratchy" or fail entirely.

Step 5: Soldering the "Hot" Leads to the Switch or Pot

The hot lead carries the actual audio signal. This is usually connected to the lugs of a 3-way or 5-way selector switch or the input lug of a volume potentiometer.

1. Thread the tinned hot lead through the eyelet of the lug.
2. Bend the wire slightly to create a mechanical connection.
3. Touch the iron to the junction of the wire and the lug.
4. Apply solder to the side opposite the iron. The solder should flow through the eyelet and surround the wire in a "Hershey’s Kiss" shape.
5. Trim any excess wire protruding from the lug to prevent accidental shorts against the cavity shielding.

Step 6: Testing and Final Assembly

Before screwing the pickguard back down, perform a "tap test." Plug the guitar into an amp at low volume. Select each pickup position and gently tap the pickup pole pieces with a screwdriver. You should hear a clear "thump" through the amp. If a position is silent, or if there is a loud hum that disappears when you touch the strings, you likely have a "cold" joint or a reversed ground.

Pickup Wiring Standards and Color Coding Reference

Different manufacturers use different color codes for their four-conductor humbuckers. Connecting the wrong wires will result in pickups being "out of phase" (thin, nasal sound) or stuck in a permanent coil-tap. The following table identifies the standard wiring for the industry's leading brands.

Critical Troubleshooting for Common Wiring Failures

Even seasoned technicians encounter issues. Most problems stem from a lack of "wetting" (solder failing to bond) or accidental bridges.

• The "Cold Solder Joint" Failure




  • Root Cause: The component was moved while the solder was cooling, or the iron was not hot enough to melt the solder into the base metal. This results in a dull, grey, grainy appearance.
  • Actionable Fix: Re-apply heat to the joint until the solder liquefies. Add a tiny drop of fresh solder to introduce new flux, and hold the wire completely still until it sets into a shiny finish.

• Excessive Hum and Ground Loops




  • Root Cause: A ground wire has become disconnected, or you have created a loop where ground paths travel in a circle, acting as an antenna for EMI.
  • Actionable Fix: Use a multimeter on the "Continuity" (beep) setting. Touch one probe to the output jack sleeve and the other to the bridge. If it doesn't beep, your bridge ground is loose. Ensure all grounds terminate at a single "star ground" point (usually the back of the volume pot).

• The "Nasal" Out-of-Phase Sound




  • Root Cause: Two pickups are wired with opposite magnetic or electrical polarity, causing signal cancellation when both are active.
  • Actionable Fix: Identify which pickup is the newcomer and swap its Hot and Ground leads. This reverses the electrical phase and restores the full-bodied tone.

• Signal Intermittency or "Cut Out"




  • Root Cause: A stray wire strand is touching the side of the control cavity (especially if it is lined with conductive copper tape or graphite paint).
  • Actionable Fix: Inspect all lugs on the switch and pots. Trim back any "whiskers" of wire. Wrap any exposed connections with small pieces of heat-shrink tubing for maximum insulation.

Frequently Asked Questions

What is the best temperature for soldering guitar electronics?

For most guitar work, a temperature of 700°F (370°C) is ideal. This allows the solder to flow quickly (within 2-3 seconds) so that the heat does not have time to migrate deep into the component and damage the internal resistive elements of the potentiometers.

Can I use lead-free solder for my guitar pickups?

While you can use lead-free solder, it is significantly more difficult for guitar applications. Lead-free solder has a higher melting point and poor "wetting" characteristics, which often leads to cold joints on large surfaces like the back of a potentiometer. If you must use it, ensure your iron is set to at least 750°F.

Why does my volume pot feel "crunchy" after soldering?

This is a sign of "heat soak." If you held the iron on the back of the pot for too long, the heat traveled down the shaft and melted the plastic substrate or the lubricant inside the pot. Once this happens, the component is permanently damaged and must be replaced.

Do I need to use flux paste when soldering pickups?

Most electronics-grade solder contains a "rosin core" which acts as flux. However, when soldering to the back of a large metal pot, a tiny amount of additional non-acidic flux paste can help the solder spread more evenly and prevent oxidation.

Master Your Guitar's Internal Tone Circuit

By mastering the art of the solder joint, you take full control over your instrument's voice and reliability. Investing in high-quality components and maintaining your tools will ensure your guitar performs flawlessly on stage and in the studio for years to come.
