How To Test Regulator Rectifier: Step-by-Step Electrical Troubleshooting Guide

A failing regulator rectifier can leave your motorcycle or ATV with a dead battery or fried electrical components due to uncontrolled alternating current surges. By using a standard digital multimeter set to diode mode and resistance, you can isolate internal semiconductor failures within minutes.

Pre-Operation & Equipment Checklist

Diagnosing a charging system fault requires methodical preparation to avoid misdiagnosing a healthy component or damaging sensitive electrical harnesses. Before touching a single fastener, ensure you have gathered the proper tools and established a safe working environment. A regulator rectifier controls system voltage by converting AC power from the stator into DC power for the battery and electrical accessories, dumping excess voltage as heat. When this unit fails, it typically presents as an overcharging condition (boiling battery acid and burning out bulbs) or an undercharging condition (dead battery despite a healthy alternator).

• Essential Gear, Tools, and Materials:


  • Digital Multimeter (DMM) with continuity, resistance, and diode testing functions
  • Insulated hand tools (metric socket set, screwdrivers)
  • Clean shop rags and electrical contact cleaner
  • Personal protective equipment (safety glasses and nitrile gloves)
• Mandatory Prerequisite Knowledge & Standards:


  • Fully charged 12V lead-acid or AGM battery (resting voltage ideally above 12.6V)
  • Basic understanding of DC/AC voltage, diode forward bias, and circuit continuity
  • Factory service manual for your specific vehicle to reference pin-out diagrams and exact resistance thresholds
• Estimated Budget & Duration Benchmarks:


  • Duration: 30 to 45 minutes
  • Cost: Free if using existing tools, or $20 to $50 for a quality digital multimeter if purchasing new

Comprehensive Diagnostic and Testing Workflow

Step 1: Disconnect and Inspect the Electrical Connections

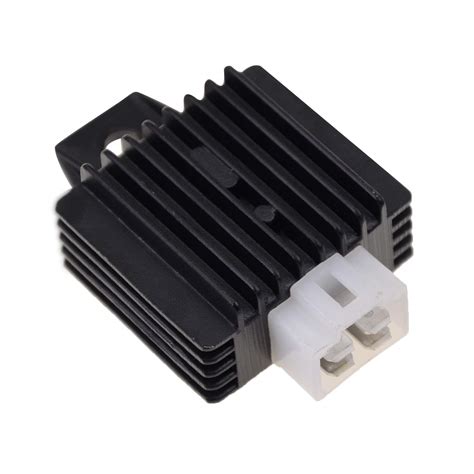

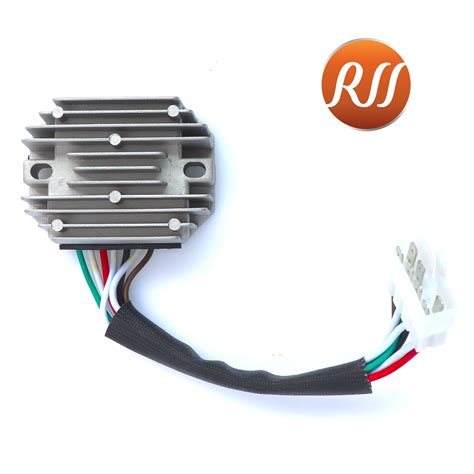

Access the regulator rectifier, which is typically mounted on an aluminum finned heat sink in an area with good airflow, such as beneath a side cover, near the front frame down tubes, or under the tail section. Disconnect the main wiring harness plug leading from the stator to the regulator and inspect the terminal pins for corrosion, melting, or oil contamination.

Warning: Never disconnect the battery while the engine is running, as the sudden voltage spike can instantly destroy the regulator rectifier and sensitive electronic control units.

Step 2: Perform the Static Diode Test

Set your digital multimeter to the diode test mode, which is indicated by a small diode symbol on the rotary dial. The internal components of a rectifier are made of silicon diodes that should only allow current to flow in one direction. Place the red (positive) meter lead on the ground terminal or pin of the regulator, and touch the black (negative) meter lead to each of the AC input pins (usually the yellow, white, or pink wires coming from the stator). Record the readings.

• A healthy diode will show a forward voltage drop reading typically between 0.400 and 0.600 volts.
• Reverse the leads by placing the black probe on the ground terminal and the red probe on each AC pin.
• The multimeter should display an open circuit (indicated as OL, 1, or infinite resistance), meaning no current is flowing backward.
• Repeat this entire process using the positive DC output wire as the common point for your meter probes, verifying that forward bias yields a reading and reverse bias shows an open circuit.

Pro-Tip: If any diode combination reads zero volts or exhibits continuity in both directions, the internal diode is shorted and the regulator rectifier must be replaced immediately.

Step 3: Check Resistance Across Regulator Pins

Switch your digital multimeter to the ohms (resistance) scale, preferably setting it to the lowest audible continuity or 200-ohm scale if manual. Measure the resistance between every combination of stator input pins and DC output pins. Consult your vehicle's factory service manual to compare your findings against the manufacturer's exact specification matrix. Any reading of absolute zero ohms indicates a direct short, while an infinite reading across working terminals indicates an open circuit and internal component failure.

Step 4: Conduct the Dynamic Charging System Test

Re-secure all electrical connections, start the engine, and let it reach normal operating conditions. Set your multimeter to direct current (DC) voltage and place the probes directly across the battery terminals while the engine idles. You should read approximately 13.0V to 13.5V. Slowly roll the throttle up to roughly 3,000 to 5,000 RPM. The voltage should steadily rise, but it must strictly cap out between 14.2V and 14.8V. If the voltage climbs past 15.0V, the regulator portion has failed to limit output. If the voltage drops below battery resting voltage, either the stator or the rectifier side is failing to supply charge.

Regulator Rectifier Diagnostics Matrix

Common Electrical Failures and Field Fixes

• Root Cause: Corroded, oxidized, or loose connector pins causing high electrical resistance, which generates extreme localized heat and melts the plastic plug housing.


  • Actionable Fix: Cut out the damaged connector block, clean the remaining wire leads back to clean copper, and solder fresh weatherproof bullet connectors or a new mating connector plug into the harness.
• Root Cause: Thermal breakdown of internal solid-state silicon junctions due to poor heat sink contact or chronic engine overheating.


  • Actionable Fix: Replace the regulator rectifier entirely. When installing the new unit, clean the mounting frame bare of paint and corrosion, and apply a thin layer of thermal transfer paste to ensure efficient heat dissipation.
• Root Cause: A failing or shorted stator sending unbalanced or excessively high AC voltage spikes that ultimately overwhelm and puncture the rectifier diodes.


  • Actionable Fix: Test the AC output and phase-to-phase resistance of the stator before installing a replacement regulator rectifier, ensuring you do not fry the new component with a faulty alternator.

Frequently Asked Questions

Can I ride my motorcycle with a bad regulator rectifier?

Operating a vehicle with a compromised regulator rectifier is strongly discouraged. An overcharging unit will cook your battery and blow headlight bulbs, while an undercharging unit will leave you stranded once the battery completely drains of reserve capacity.

What causes a regulator rectifier to fail repeatedly?

Repeated failures are typically caused by a failing stator that draws excessive current, poor frame grounding that forces the unit to run too hot, or operating with a severely degraded or shorted battery that demands maximum output from the charging system continuously.

How do I know if my stator or my regulator rectifier is broken?

To isolate the two, unplug the stator from the regulator and test the stator AC output across all phases while the engine runs using your multimeter set to AC voltage. If the stator outputs balanced AC voltage that rises evenly with RPM, the stator is healthy and the fault lies within the regulator rectifier.

Can a bad battery ruin a new regulator rectifier?

Yes, a dead, sulfated, or internally shorted battery acts as a massive electrical load that forces the regulator rectifier to work at maximum capacity continuously. This chronic over-exertion generates extreme heat that breaks down the internal silicon semiconductors.

Ensure your electrical system remains reliable by regularly inspecting charging voltages and maintaining clean, corrosion-free connections across your entire harness.
