How To Tighten Emergency Brake: Complete Step-by-Step Mechanical Guide

A loose emergency brake (also known as a parking brake or handbrake) compromises vehicle safety by failing to hold position on inclines, usually caused by cable stretch or worn self-adjusting rear drum brake components. Restoring proper tension requires locating the adjustment mechanism—either inside the cabin at the handbrake lever base or underneath the chassis near the equalizer bar—and turning the adjustment nut until the brakes engage fully within 5 to 7 clicks.

Pre-Operation & Equipment Checklist

Proper preparation ensures safe vehicle elevation and protects against rolling hazards while working on the braking system. Because you will be working underneath a lifted vehicle and manipulating safety-critical components, strict adherence to mechanical protocols is non-negotiable.

• Essential Gear, Tools, and Materials:




  • Hydraulic floor jack and heavy-duty rated jack stands (minimum 2-ton capacity)
  • Wheel chocks (minimum 2 pieces)
  • Metric and standard combination wrench set (typically 10mm to 14mm)
  • Deep socket set and ratchet
  • Penetrating fluid (such as PB Blaster or WD-40 Specialist) for rusted adjustment threads
  • Flashlight or drop light
  • Wire brush for cleaning threaded rods

• Mandatory Prerequisite Knowledge and Standards:




  • Understanding of vehicle weight distribution and secure chassis jacking points specified in the owner manual.
  • Familiarity with the difference between mechanical cable-actuated parking brakes and integrated electronic parking brake (EPB) systems, which cannot be adjusted manually via cables.

• Estimated Budget and Duration Benchmarks:




  • Duration: 45 to 90 minutes for standard under-car or console adjustments.
  • Cost: Under 10 USD if penetrating fluid or basic hand tools are required.

Step-by-Step Parking Brake Cable Adjustment Workflow

Step 1: Secure the Vehicle and Lift the Rear End

Park the vehicle on a flat, level concrete surface, engage first gear (manual transmission) or place the selector in Park (automatic transmission), and turn off the engine. Wedge heavy-duty wheel chocks securely against the front tires to prevent any forward or backward movement. Loosen the rear wheel lug nuts slightly, use a hydraulic jack to lift the rear of the vehicle safely by the manufacturer-approved differential housing or frame jacking points, and lower the chassis onto solid jack stands. Remove the rear wheels if your vehicle requires drum brake component inspection, though many cable adjustments can be performed with the wheels on while elevated.

Warning: Never rely solely on a hydraulic floor jack to support a vehicle while working underneath. Always verify that the jack stands are seated firmly on reinforced frame points before crawling beneath the vehicle.

Step 2: Locate the Parking Brake Adjustment Mechanism

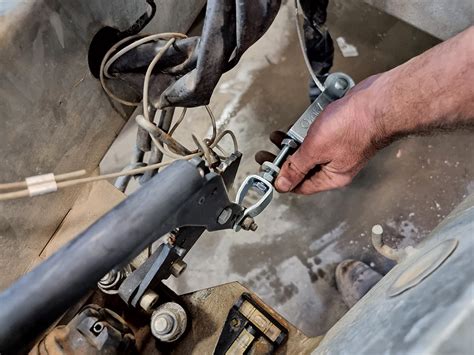

Identify the configuration of your specific parking brake system. Console-mounted handbrakes often feature an adjustment nut located directly beneath the interior center console trim, accessible by removing storage bins or cup holders. Foot-operated pedal brakes and most modern handbrakes utilize an under-car adjustment point located along the primary brake cable run, typically near the equalizer bar where the single front cable splits into dual rear cables. Use a flashlight to trace the steel cable from the brake lever or pedal backward toward the rear axle.

Step 3: Clean and Lubricate the Adjustment Hardware

Expose the threaded adjustment rod and locking nuts, which are frequently exposed to road salt, mud, and water splash. Spray a generous amount of penetrating fluid onto the threads surrounding the adjustment nut and let it sit for 5 to 10 minutes to dissolve rust and corrosion. Use a wire brush to scrub away residual debris from the exposed threads to prevent the nut from binding or stripping the stud during rotation.

Pro-Tip: If the adjustment rod spins freely while you turn the nut, use an open-ended wrench to hold the shaft or intermediate cable in place while applying your socket wrench to the fastener.

Step 4: Adjust Cable Tension and Verify Wheel Drag

Turn the adjustment nut clockwise to tighten the cable or counterclockwise depending on thread orientation, taking up the slack in the line. As you tighten the mechanism, periodically return to the cabin and pull the handbrake lever to check the resistance.

• The parking brake lever should feel firm and fully engage between 5 to 7 clicks (or notches) of travel.
• If the brake engages in fewer than 3 clicks, the cable is over-tightened, which will cause the rear brake pads or shoes to drag continuously against the rotors or drums.
• If the lever requires more than 8 clicks to hold firm, the cable remains too loose and requires further adjustment.

Spin the elevated rear wheels by hand to ensure they rotate freely without binding or dragging when the handbrake is completely disengaged. If the wheels drag, back off the adjustment nut slightly until free rotation is restored.

Step 5: Final Testing and Safety Verification

Lower the vehicle back to the ground using the hydraulic jack, torque the rear wheel lug nuts to factory specifications, and remove the wheel chocks. Test the parking brake on a steep incline by pulling the lever firmly while shifting the transmission into neutral to verify that the vehicle holds securely without rolling. Drive the vehicle at low speed for half a mile, safely pull over, and cautiously touch the rear wheels near the brake assemblies to ensure they are not abnormally hot, which indicates excessive brake drag.

Parking Brake System Types and Technical Specifications

Common Parking Brake Failures and Field Fixes

• Root Cause: Severely rusted or seized adjustment nuts that refuse to turn without breaking the threaded rod.




  • Actionable Fix: Apply heavy-duty rust penetrant and allow it to soak for 30 minutes. If the fastener remains locked, heat the nut gently with a propane torch to expand the metal before applying turning force with a breaker bar.

• Root Cause: One rear wheel locks while the other spins freely after cable adjustment.




  • Actionable Fix: The equalizer bar is misaligned or jammed. Inspect the cable splitter underneath the vehicle, lubricate the pivot points, and ensure both left and right rear cables move evenly when the handbrake is actuated.

• Root Cause: The handbrake lever pulls up completely to the top without offering any resistance.




  • Actionable Fix: The parking brake cable has snapped completely, detached from the equalizer, or disconnected from the rear brake caliper lever. Inspect the entire length of the cable from the cabin to the wheels to identify broken strands or unhooked retention clips.

Frequently Asked Questions

How many clicks should an emergency brake have?

A properly adjusted mechanical parking brake should require between 5 and 7 clicks or notches to become fully engaged and hold the vehicle securely. Fewer than 3 clicks means the brake is too tight and will drag, while more than 8 clicks indicates a loose cable that requires tightening.

Can I adjust my emergency brake myself?

Yes, adjusting a mechanical parking brake is an accessible DIY task if you have safe access to a floor jack, jack stands, and basic hand tools. However, vehicles equipped with electronic parking brakes require a specialized OBD2 diagnostic scan tool to retract the rear calipers electronically before service.

Why is my emergency brake still loose after tightening the cable?

If tightening the adjustment nut does not restore firmness to the lever, the internal self-adjusting mechanism inside rear drum brakes may be seized, or the brake shoes are worn down beyond their service limit. In this scenario, you must remove the brake drums or calipers to service the internal hardware.

Will a loose emergency brake fail a safety inspection?

Yes, state and regional vehicle safety inspections test parking brake holding power on a gradient or rolling dynamometer. A handbrake that fails to hold the vehicle stationary against engine idle or excessive lever travel will result in an immediate inspection failure.

Master Your Vehicle Maintenance Today

Keep your braking system performing at peak safety standards by checking cable tension annually and performing professional inspections during every routine brake pad replacement. Take control of your automotive maintenance schedule and ensure total peace of mind on every incline.
