How To Wire A 30 Amp Outlet: A Comprehensive Guide To NEMA TT-30R And 14-30R Installations

Wiring a 30-amp outlet requires 10 AWG copper conductors connected to a dedicated 30-amp circuit breaker, ensuring voltage drop is minimized and the NEMA configuration matches the specific appliance load. Proper grounding, terminal torque settings, and adherence to NEC 210.21(B) standards are critical to prevent electrical fires and ensure equipment longevity.

Essential Electrical Planning and Material Specifications for 30-Amp Circuits

Before beginning an electrical installation of this magnitude, it is imperative to distinguish between the two primary types of 30-amp circuits found in residential and recreational settings. A 120-volt 30-amp circuit is most commonly used for RV power pedestals (NEMA TT-30R), while a 240-volt 30-amp circuit is standard for electric clothes dryers (NEMA 14-30R) or small shop equipment like air compressors and welders (NEMA 6-30R). Mixing these configurations can result in catastrophic equipment failure or fire.

The National Electrical Code (NEC) dictates that 30-amp circuits must utilize a minimum of 10 AWG (American Wire Gauge) copper wire. Using 12 AWG, which is standard for 20-amp circuits, will lead to excessive heat buildup and potential insulation melting under full 30-amp loads. Furthermore, any run exceeding 100 feet should be evaluated for voltage drop; in many cases, an upgrade to 8 AWG wire is necessary for long distances to maintain the standard 3% maximum voltage drop recommended for branch circuits.

Project Checklist and Technical Requirements

• Conductors: 10/2 Non-Metallic (NM-B) cable for 240V without neutral or 120V RV outlets; 10/3 NM-B cable for 240V dryer outlets requiring a neutral.
• Circuit Breaker: A dedicated 30-amp single-pole breaker (for 120V) or double-pole breaker (for 240V) compatible with your specific load center brand (e.g., Square D, Eaton, Siemens).
• Receptacle: NEMA TT-30R (RV), NEMA 14-30R (4-prong dryer), or NEMA 6-30R (240V industrial).
• Electrical Box: 2-gang extra-deep plastic or metal box (minimum 30 cubic inch capacity to accommodate wire fill and large device body).
• Tools: Non-contact voltage tester, wire strippers (rated for 10 AWG), torque screwdriver, needle-nose pliers, and a cable ripper.
• Estimated Budget: $60 to $150 depending on the length of the wire run and the cost of the specific breaker.
• Duration: 2 to 4 hours for a standard residential installation.

Professional Execution for Installing High-Amperage Receptacles

The process of wiring a 30-amp outlet involves precise termination and careful management of heavy-gauge wire, which is significantly stiffer and more difficult to manipulate than standard 14 AWG or 12 AWG household wiring.

Step 1: Selecting the Correct Circuit Configuration

Before purchasing materials, identify the exact power requirements of the appliance. An RV 30-amp plug has three prongs: one hot (120V), one neutral, and one ground. A modern dryer 30-amp plug has four prongs: two hots (each 120V, totaling 240V), one neutral, and one ground.

Warning: Never wire an RV TT-30R outlet to a double-pole 240V breaker. Sending 240 volts into a 120-volt RV system will instantly destroy the onboard electronics, converter, and appliances.

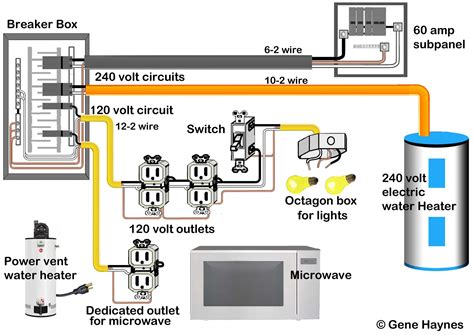

Step 2: Routing the 10 AWG Cable

Run the 10-gauge cable from the main service panel to the desired outlet location. If you are using NM-B (Romex) through wall studs, ensure the holes are centered to avoid nail punctures, or install metal nail plates where the cable is within 1.25 inches of the stud face. For exposed installations in garages or basements, the cable must be protected within EMT (Electrical Metallic Tubing) or PVC conduit. If using conduit, you must switch from NM-B cable to individual THHN/THWN conductors, as pulling jacketed Romex through conduit is a violation of heat dissipation standards and fill-capacity rules.

Step 3: Preparing the Electrical Box and Conductors

Mount the electrical box securely. For 30-amp outlets, a "deep" box is non-negotiable. The volume of 10 AWG wire combined with the physical size of a 30-amp receptacle requires significant "box fill" space to prevent the wires from being crushed or the terminals from loosening when the device is pushed into place.

1. Strip approximately 6 to 8 inches of the outer jacket from the cable using a cable ripper.
2. Insert the cable into the box, ensuring at least 1/4 inch of the jacket remains inside the box past the strain relief or connector.
3. Strip 3/4 inch of insulation from the end of each individual conductor (Black, Red, White).
4. Use your needle-nose pliers to create a clean, clockwise loop if using side-terminals, or keep them straight if the receptacle uses back-wire pressure plates.

Step 4: Terminating the 30-Amp Receptacle

Termination is where most DIY failures occur. High-amperage draws create heat; if a connection is loose, the resistance increases, creating more heat and potentially melting the receptacle.

• For a NEMA 14-30R (4-Prong Dryer): Connect the Green or bare copper wire to the green grounding screw. Connect the White (neutral) wire to the silver-colored terminal. Connect the Black and Red (hot) wires to the two brass or gold-colored terminals. The orientation of the Black and Red wires does not matter on a standard 240V circuit.
• For a NEMA TT-30R (3-Prong RV): Connect the Green or bare copper wire to the green grounding screw. Connect the White (neutral) wire to the silver terminal marked "Neutral" or "W". Connect the single Black (hot) wire to the brass terminal marked "Hot" or "Y".

Pro-Tip: Use a torque screwdriver to tighten the terminal screws to the manufacturer’s specific inch-pound rating (usually found on the side of the device or the packaging). This ensures the connection is tight enough to handle thermal expansion and contraction during use.

Step 5: Main Panel Integration and Breaker Installation

With the outlet side finished and the cover plate installed, move to the electrical panel. Ensure the main breaker is OFF if you are not experienced with working in a live panel.

1. Connect the ground wire to the ground bus bar.
2. Connect the white neutral wire to the neutral bus bar (unless using a GFCI breaker, in which case the neutral connects directly to the breaker).
3. Snap the 30-amp breaker into an available slot. For a 240V circuit, this must be a double-pole breaker that straddles both "legs" of the panel's bus bars.
4. Insert the hot wire(s) into the breaker terminals and tighten firmly.
5. Turn the main power back on, then flip the new 30-amp breaker.

Technical Parameters for Common 30-Amp Receptacle Configurations

Correcting Common Wiring Faults and Circuit Failures

Even with careful planning, high-amperage circuits can exhibit issues during the initial testing phase or after several months of use. Identifying the root cause requires a systematic approach to voltage testing and physical inspection.

• Scenario: The breaker trips immediately upon plugging in the appliance.




  • Root Cause: This usually indicates a direct short circuit between a hot wire and a ground or neutral wire. This often happens if a stray strand of wire is touching the side of a metal electrical box or if a screw pierced the wire insulation during installation.
  • Actionable Fix: Turn off the power and remove the receptacle from the box. Inspect the insulation of the wires for nicks. Ensure the bare ground wire is pushed far back into the box and is not making contact with the brass hot terminals.

• Scenario: The appliance works, but the outlet or plug feels excessively hot to the touch.




  • Root Cause: Loose terminal connections or improper wire gauge. High resistance at the terminal point creates localized heating. Alternatively, the use of aluminum wire with a copper-only rated receptacle can cause oxidation and heat.
  • Actionable Fix: Use a digital multimeter to check for a voltage drop under load. If the voltage drops significantly when the appliance starts, the connections are likely loose. Re-torque all terminals to the manufacturer's specifications and ensure only copper-to-copper connections exist unless CO/ALR rated devices are used.

• Scenario: A 240V dryer or tool won't start, but the breaker hasn't tripped.




  • Root Cause: One "leg" of the double-pole breaker is not seated properly, or a wire has come loose from one of the two hot terminals. This results in the device receiving 120V instead of 240V.
  • Actionable Fix: Test the voltage between the two hot terminals on the receptacle. You should read approximately 240V. If you read 120V between each hot and ground but 0V between the two hots, both hots are connected to the same phase in the panel. Move the breaker to a position where it contacts both bus bar legs.

Frequently Asked Questions

Can I use 12-gauge wire for a 30-amp outlet if the run is very short?

No, 12-gauge wire is rated for a maximum of 20 amps under standard NEC Table 310.15(B)(16) conditions. Using 12 AWG for a 30-amp load violates fire safety codes and can cause the wire to overheat significantly before the breaker ever trips, creating a high risk of an electrical fire.

Why does a 30-amp dryer outlet need four wires while an RV outlet only needs three?

A modern dryer uses 240 volts for the heating element but 120 volts for the timer, lights, and drum motor, requiring a neutral wire to complete the 120V circuit. An RV 30-amp system is strictly a 120-volt system, so it only requires one hot, one neutral, and one ground.

Do I need a GFCI breaker for a 30-amp RV outlet?

The 2020 and 2023 NEC updates have expanded GFCI (Ground Fault Circuit Interrupter) requirements for many outdoor and garage outlets. Specifically, NEC 210.8(F) requires GFCI protection for many outdoor outlets; however, local jurisdictions vary on whether they enforce this for dedicated 30-amp RV pedestals. Always check with your local building department for current regional amendments.

Can I replace an old 3-prong dryer outlet with a 4-prong one?

Yes, but only if you run a new 10/3 cable (four wires total) from the panel. You cannot simply bridge the ground and neutral on a 4-prong outlet to make it work with old 3-wire cabling, as this creates a "bootleg ground" which is a significant safety hazard.

Secure Your High-Power Electrical Installations

Installing high-amperage circuits requires precision and a strict adherence to safety protocols to protect your home and equipment. If you are unsure about panel capacity or local code requirements, consult with a licensed master electrician to ensure your 30-amp installation is fully compliant and safe.
